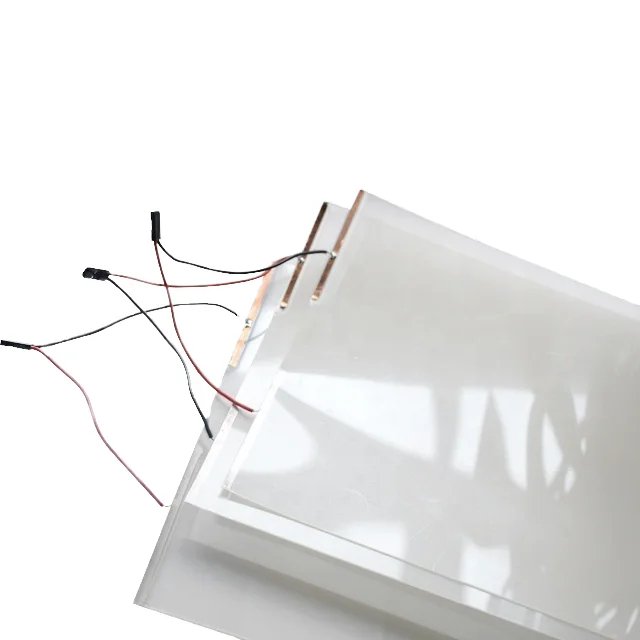

PDLC Smart Film/electronic Privacy Film/switchable Glass for Protect Privacy 0.38mm Thickness 99%UV Block Soundproofing
£59.00
- Warranty : 2 Years
- Shape : Round, other, Oval, Rectangle, Square
- After-sale Service : Online Technical Support, Free Spare Parts, Return and Replacement
- Project Solution Capability : graphic design
- Application : Apartment, Doors, Furniture, Car, Residential, Cabinets, building window, Storage Closet, Villa, Hotel, Office Building
- Design Style : Modern
- Thickness : 0.38 mm
- Place of Origin : China
- Brand Name : RS
- Model Number : G1
- Material : pdlc
- Function : Decorative, Explosion-Proof, Heat Insulation, sound proof
- Feature : Self-adhesive
- Type : Glass Films
- Surface Treatment : Opaque
- Roll Width : 1020,1220,1520,1820mm
- Roll Length : ≤ 50m/roll
- Piece Width : 1000,1200,1500,1800mm
- Piece Length : According to customer requirements
- Working Voltage : 65V
- Haze% OFF : 99.7–100
- Haze% ON : 1.47–3.13
- Full light transmittance% OFF : 71–82
- Full light transmittance% ON : 82–92
- Parallel light transmittance% : 90–97
| Product Description | 65V High Transparent Switchable PDLC Film |
||

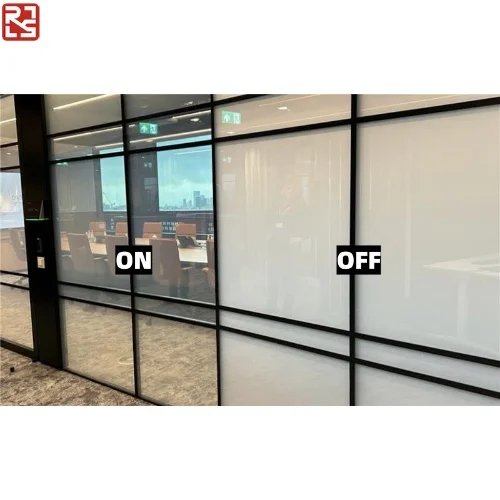

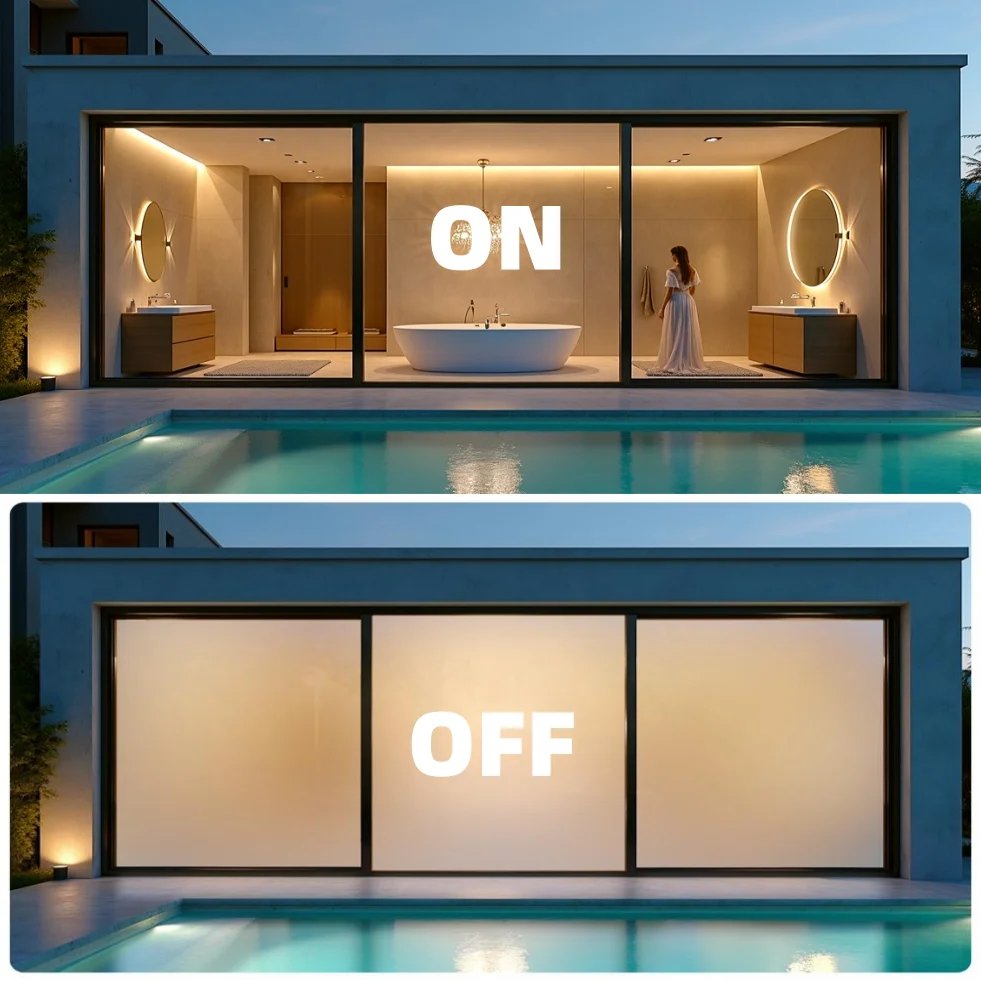

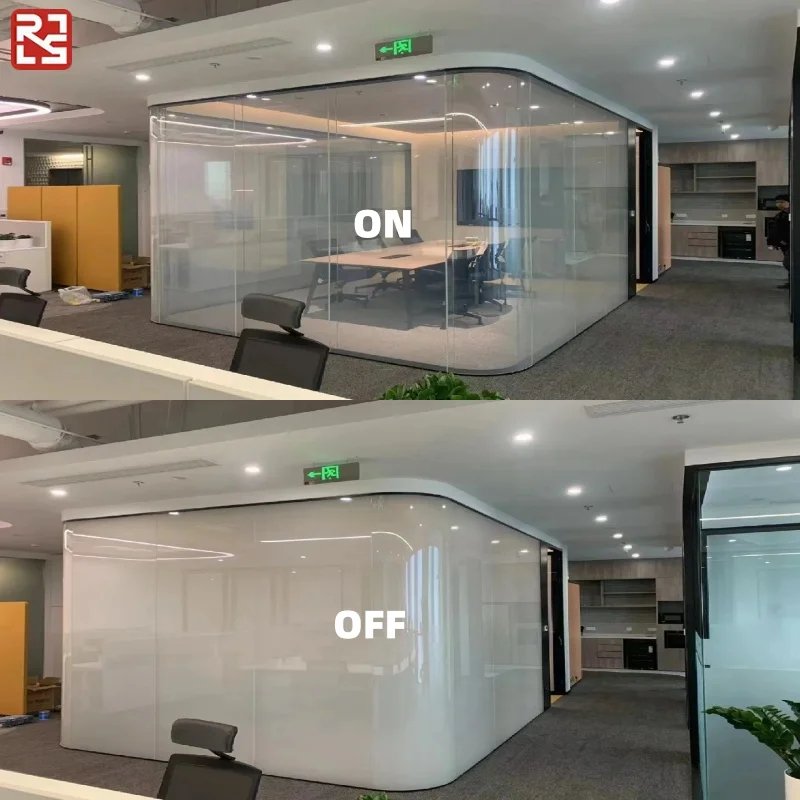

| Operation Model | Power On | Transparent | |
| Power Off | Opaque | ||
| Optical Performance | Avaliable Colour | Milky White | Dark Grey |
| Hazeon | 4-5% | 4-5% | |
| Hazeoff | >90% | >90% | |
| View Angle | About 145 Degree | ||
| Light Transmittance On | 90% | 32% | |
| Light Transmittance off | 4% | 4% | |
| UV Block | >99% | ||
| Infrared Block | On Model>17% Off Model >80% | ||
| Size | Maxmium | Self-adhesive Film Roll Size:1*50M,1.2*50M,1.5*50M ,1.8*50Mstandard type Non-adhesive Film Roll Size:1*50M,1.2*50M,1.5*50M,1.8*50M,2.0*50Mstandard type |
|
| Thickness | 0.4mm | ||
| Electrical Performance | Operating Voltage | AC65±5V | |
| Power Consumption | About 3.7W/SQM | ||
| Frenquency Rate | 50-60HZ | ||
| Operating Temperature | – 20℃– 70 ℃ | ||
| Switch Time | Less than 1 second Off→On :about 200 milliseconds On→Off :about 600 milliseconds | ||
| Life Time | More than 100000h20years | ||
| Other Functions | Dimmer Function | YES | |
| Projection Screen | YES | ||
| Warranty Time | Two years |
Q1. How does Smart Film work?
A: In the “off state”, when no power is applied to the smart film, light is absorbed or scattered, and the film looks dark gray or white. In the “open state”, light is transmitted and the film looks transparent.
Q2: Can we install this product ourselves?
A: Yes, we have English teaching videos and manual.
Q3: Does the PDLC film save energy?
A: Yes, it is considered a green product, consuming about 3.7 watts per square meter.
Q4: Can it block harmful ultraviolet rays?
A: Yes. It can block more than 99% of harmful ultraviolet rays in energized and non-energized states
Q5. How is the common size ?
A: By sheet, we can do any customized size. By roll, the adhesive film: 1*50M, 1.2*50M, 1.5*50M, 1.8*50M non-adhesive film: 1*50M, 1.2*50M, 1.5*50M, 1.8*50M, 1.9*50M, 2*50M
Q6. What is the life expectancy of your product?
A: Life expectancy is about 20 years or switching> 200000000 times.
Q7. How do I get samples?
A: We are honored to provide you samples, but you need to pay the freight.
Q8. Will you test all products before shipping? and warranty
A: Yes, we have passed 100% test before shipment. Warranty is 5 years.
Q9. How about the packaging? Are they safe?
A: Packaged in the tube carton or wooden case. smart film is usually packed in the tube carton and shipped by DHL. Smart glass is usually packed in the wooden case and shipped by sea.
| Color | Grey, Black, White |
|---|
